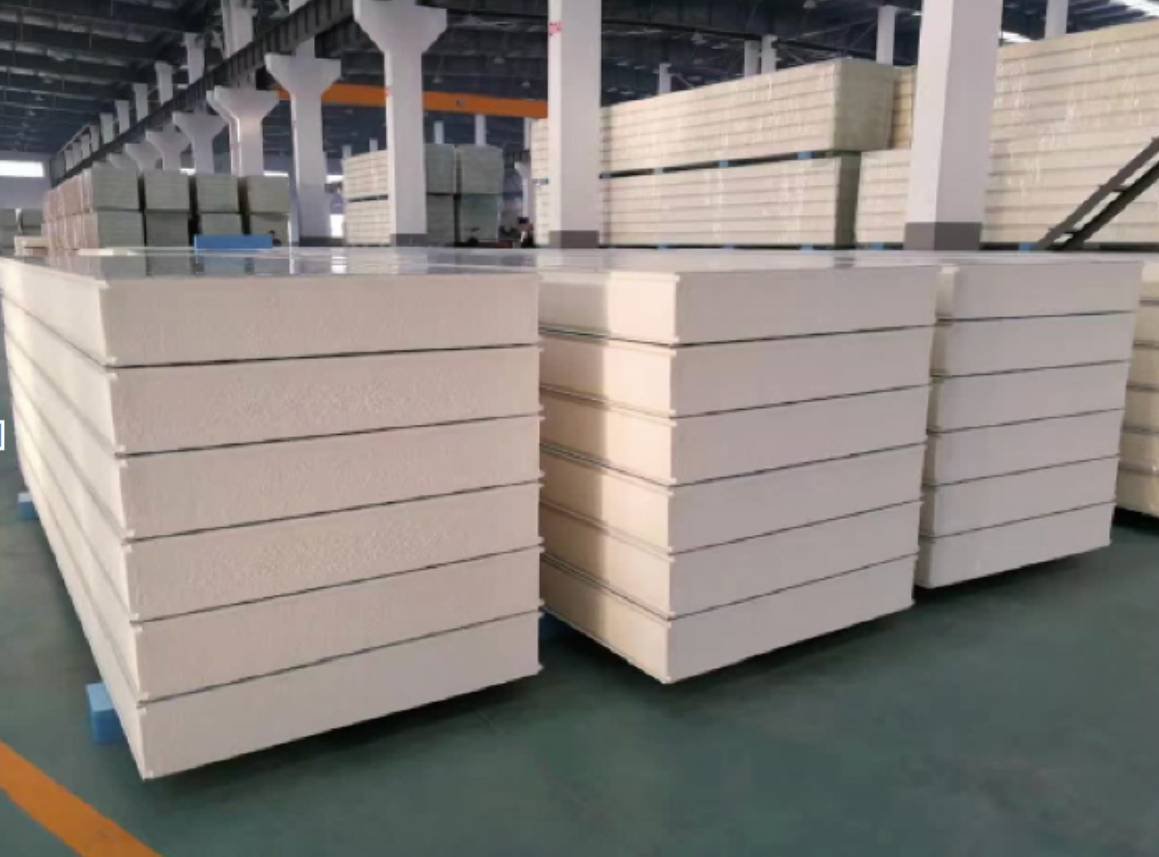

Insulated Panels
Insulated panels are essential components in cold storage construction, providing thermal insulation to maintain consistent low temperatures and ensure energy efficiency. These panels are designed to create an effective barrier between the cold storage interior and the external environment, minimizing heat transfer and maintaining the desired temperature for stored goods.
Type of Insulated Panels:
Polyurethane (PUR) / Polyisocyanurate (PIR) / Expanded Polystyrene (EPS) / Extruded Polystyrene (XPS)
| Properties :- |
- Thermal Insulation: The closed-cell structure of the Insulated Panels. core.provides excellent thermal insulation, helping maintain desired temperatures inside buildings.
- Acoustic Insulation: Insulated Panels offer sound resistance.
- Structural Durability: They provide sturdy construction.
- Long Service Life: Insulated panels are durable and have good longevity.
- Lightweight: Their lightweight nature makes handling and installation easier.
- Energy-Efficient: The thermal insulation minimizes energy consumption.
- Weather-Proof: Insulated panels withstand various weather conditions.
- Modular and Portable: Easy to dismantle, transport, and assemble.
- CFC-Free: Environmentally friendly.
- Air and Moisture Barrier: Reduces drafts.
|
| Specification :- |
- Insulated panel thickness – 50 mm to 300 mm.
- Density: 40-45Kg/ m3
- Compressive Strength: 1.851 kgf/cm2
- Tensile Strength: 3.4 kgf/cm2
- Adhesion strength: 1.81 kgf/cm2
- Water Absorption: 0.2%
- Temperature Range: (-) 20 C to (+) 110 C depends on thickness
- Thermal Conductivity: 0.0214 W/ m-k
|
