Docking System

Docking systems in cold storage facilities are critical for the efficient and safe transfer of temperature-sensitive goods between trucks and the storage facility. These systems ensure minimal temperature fluctuation during loading and unloading, maintaining the integrity of the products.

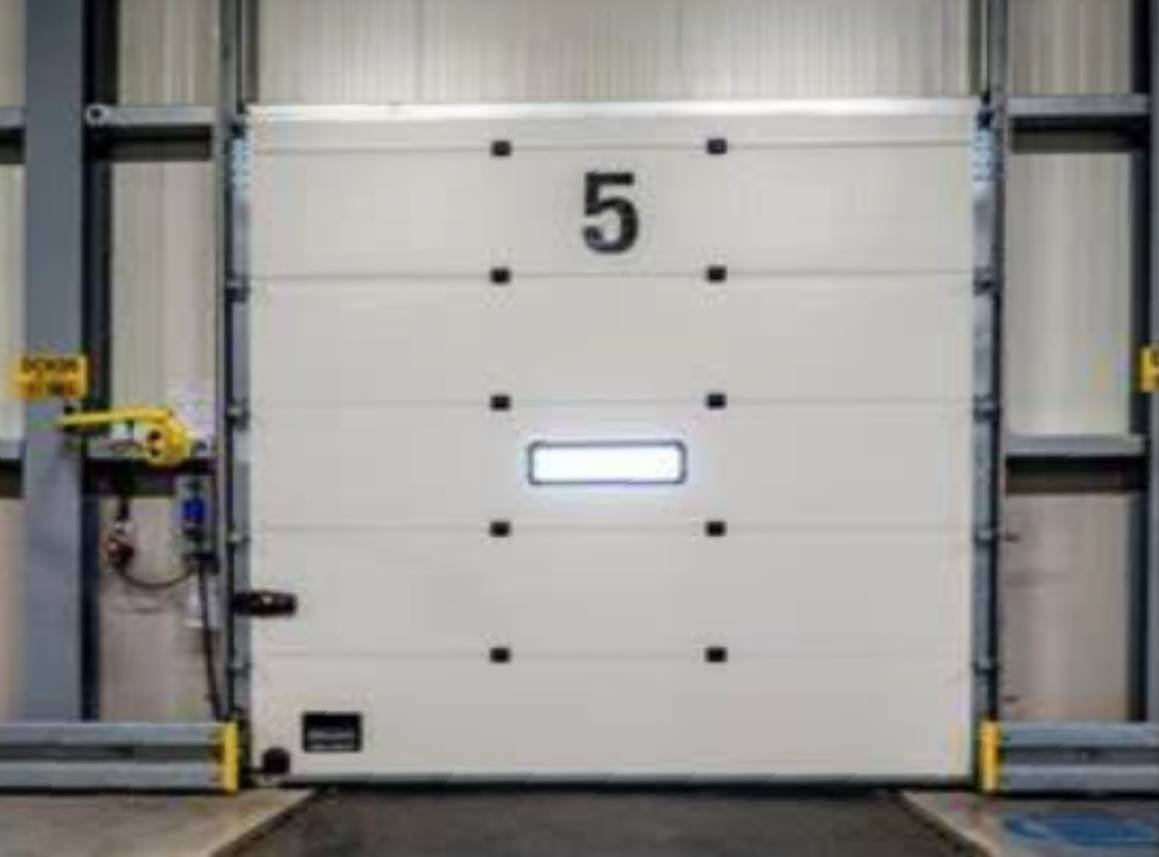

Overhear Dock Doors

Max size: (W x H) 3600 x 3600 mm Panel thickness: 42 mm Panel material: Diamond grid steel Filling: CFC-free polyurethane, flame retardant DIN 4102-B2 Weight: Steel: 13 kg/m2 To get the total weight of the door add 15 kg for the drive unit located on the bottom panel. Color outside: 13 standard RAL colors Color inside: RAL 9002 Track types: VL, HL Windows: Optional Electrical operation: Optional: Automated operation, Access control, Safety function Supply voltage: 230 V AC, 50/60 HZ Input power 81W ED = 30%, S3 10 min, non-continuous operation (equals 40 cycles per hour) Brake: Mechanical brake with electrical release Speed monitor: electronic monitoring Limit switch: Controlled by safety function with input from encoders Speed: 0.3 m/s Direct drive system with chain No special wall reinforcement necessary Temperature range: 0°C to 55°C Soft stop, soft start Connection using “CEE plug” or lockable mains isolator Maximum door weight 175 kg.

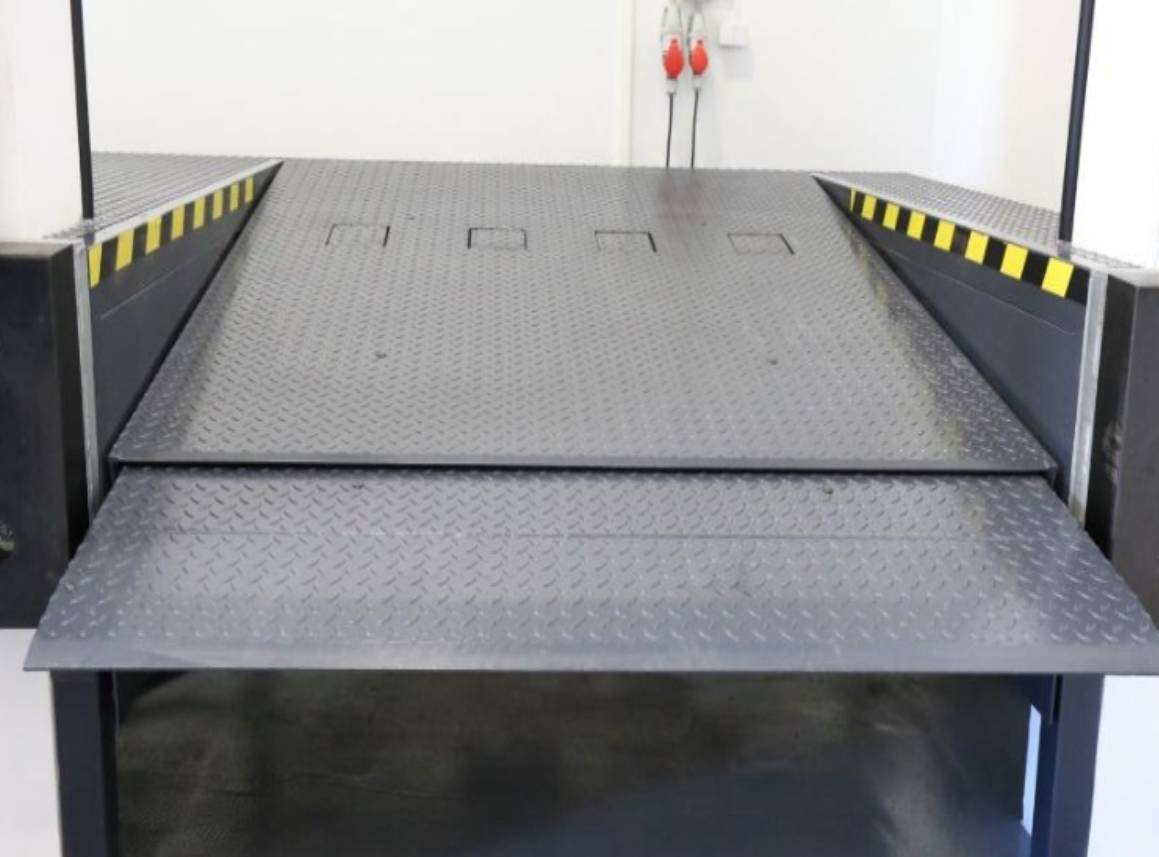

Dock Leveler

Nominal length 2000, 2500, 3000 mm Nominal width 2000, 2200, 2250 mm Load capacity 60 kN (6 tonnes) Steel grade all steel parts S355 Vertical working range Rise above dock Fall below dock up to 530 mm down to 470 mm Platform tear-plate thickness 6 mm S355 (6/8) Max. point load leveler platform 6,5 N / mm² Lip type and length telescopic, 500/1000 mm ergonomic lip, 345 mm Lip material steel or aluminium Lip option tapered lip / Retracting tongues Control unit protection class IP 54 Temperature range hydraulic oil -15°C - +60°C European standard EN 1398 Dock levelers

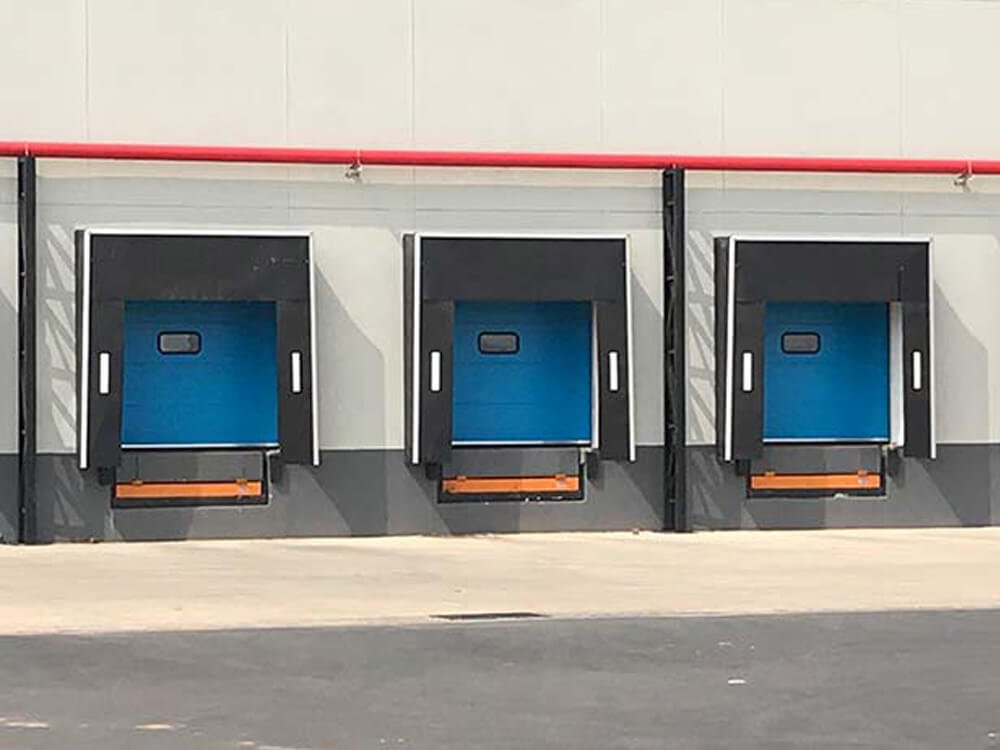

Curtain Dock Shelters
Sizes – nominal height 3280, 3480, 3680 mm Sizes – nominal width 3250, 3450 mm Sizes - nominal depth 600 mm, 900 mm Size – top curtain 1000 mm Curtain colour Black Parking guides White Wall fixings Concrete, sandwich, light concrete, loadhouse, cavity, insulated pane
