Insulated Doors

Insulated doors are vital components in cold storage facilities, providing an efficient barrier to maintain the desired low temperatures and ensure energy efficiency. These doors are designed to minimize thermal exchange between the inside and outside of the cold storage area, thereby preserving the integrity of stored goods.

Types of Insulated doors:
Manual Swing / Manual Sliding / Motorized Sliding / Rapid.
Application: Ambient temperature, Chiller temperature & Freezer temperature.
Thickness: 60 to 120 mm for sliding, 3mm to 6mm for rapid.


Properties :-
  • Thermal Insulation: The closed-cell structure of the Insulated Panels. core.provides excellent thermal insulation, helping maintain desired temperatures inside buildings.
  • Acoustic Insulation: Insulated Panels offer sound resistance.
  • Structural Durability: They provide sturdy construction.
  • Long Service Life: Insulated panels are durable and have good longevity.
  • Lightweight: Their lightweight nature makes handling and installation easier.
  • Energy-Efficient: The thermal insulation minimizes energy consumption.
  • Weather-Proof: Insulated panels withstand various weather conditions.
  • Modular and Portable: Easy to dismantle, transport, and assemble.
  • CFC-Free: Environmentally friendly.
  • Air and Moisture Barrier: Reduces drafts.

Manual Swing
Specification :-
  • Density: 40-45Kg/ m3
  • Compressive Strength: 1.851 kgf/cm2
  • Tensile Strength: 3.4 kgf/cm2
  • Adhesion strength: 1.81 kgf/cm2
  • Water Absorption: 0.2%
  • Temperature Range: (-) 20 C to (+) 110 C depends on thickness
  • Thermal Conductivity: 0.0214 W/ m-k

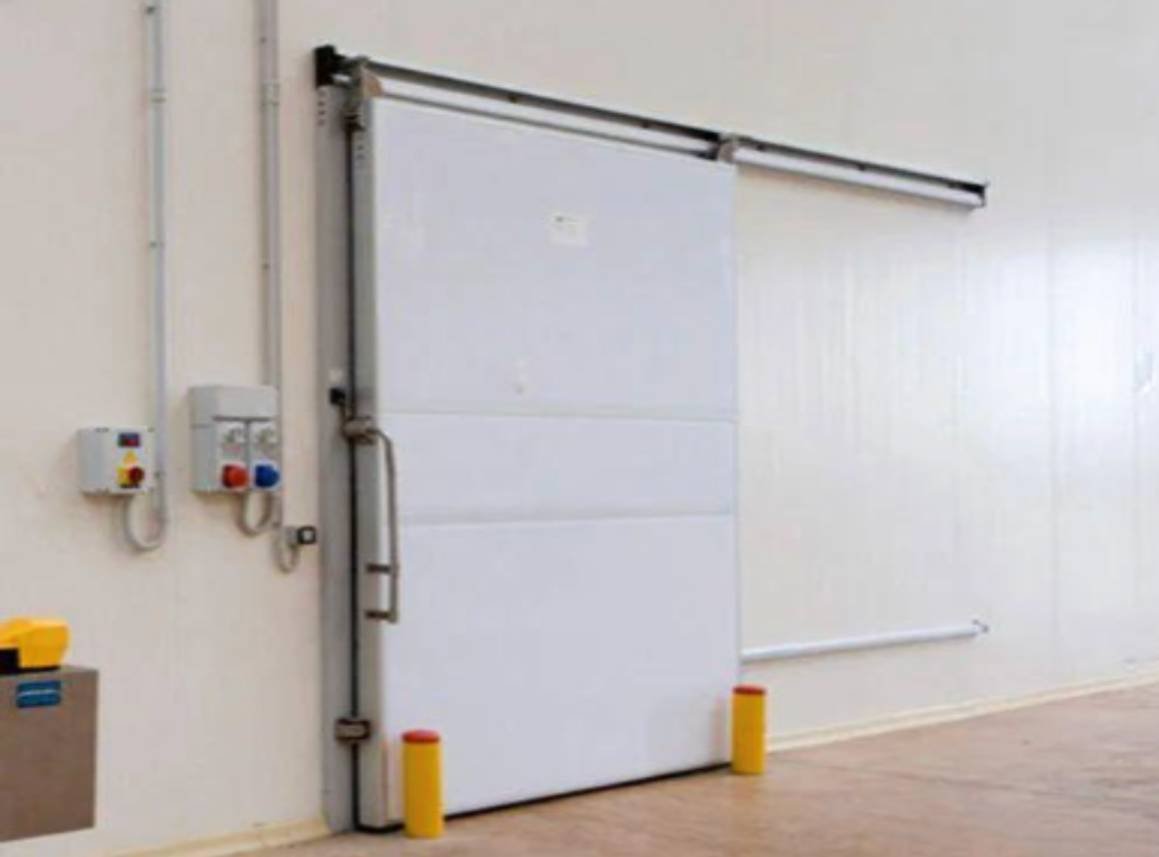

Manual Sliding / Motorized Sliding
